BEESONG SMPTE Hybrid Fiber Camera Converter

This product is specially designed for SONY cameras that pursue excellent image quality for multi-camera production.The scene brings unparalleled convenience experience, especially suitable for multi-camera production environment in the field of broadcasting.

Technical Characteristics

1.Integrated circuit based on independent intellectual property rights, through CWDM technology to achieve single-mode dual-fiber relay-free transmission distance up to 300 meters ;

2.Video signal support ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD) and ST-259 (SD); DVB-ASI and AES10 (MADI) compatible; Both the transmitter and receiver have clock recovery functions; The signal input has an automatic cable equalization (EQ) function, and the output has a drive (CD) function;

3.Support REMOTE control signal, remote control camera iris, zoom, exposure and other operations;

4.XLR audio intercom,compatible with I2s bus and msb formats, high linearity, dynamic range and low distortion;

5.Support remote reverse control of 1 channel tally signal, through tally lights, guests, audiences, and operators know the current status of the camera;

6.Gigabit ethernet supports the transmission of VLAN ultra-long packets, which can be matched with switch products that support the IEEE802.1Q protocol, and can support giant frame ethernet packets with a maximum packet length of 9216;

7.Rich status indicators, which can quickly grasp the status of the equipment;

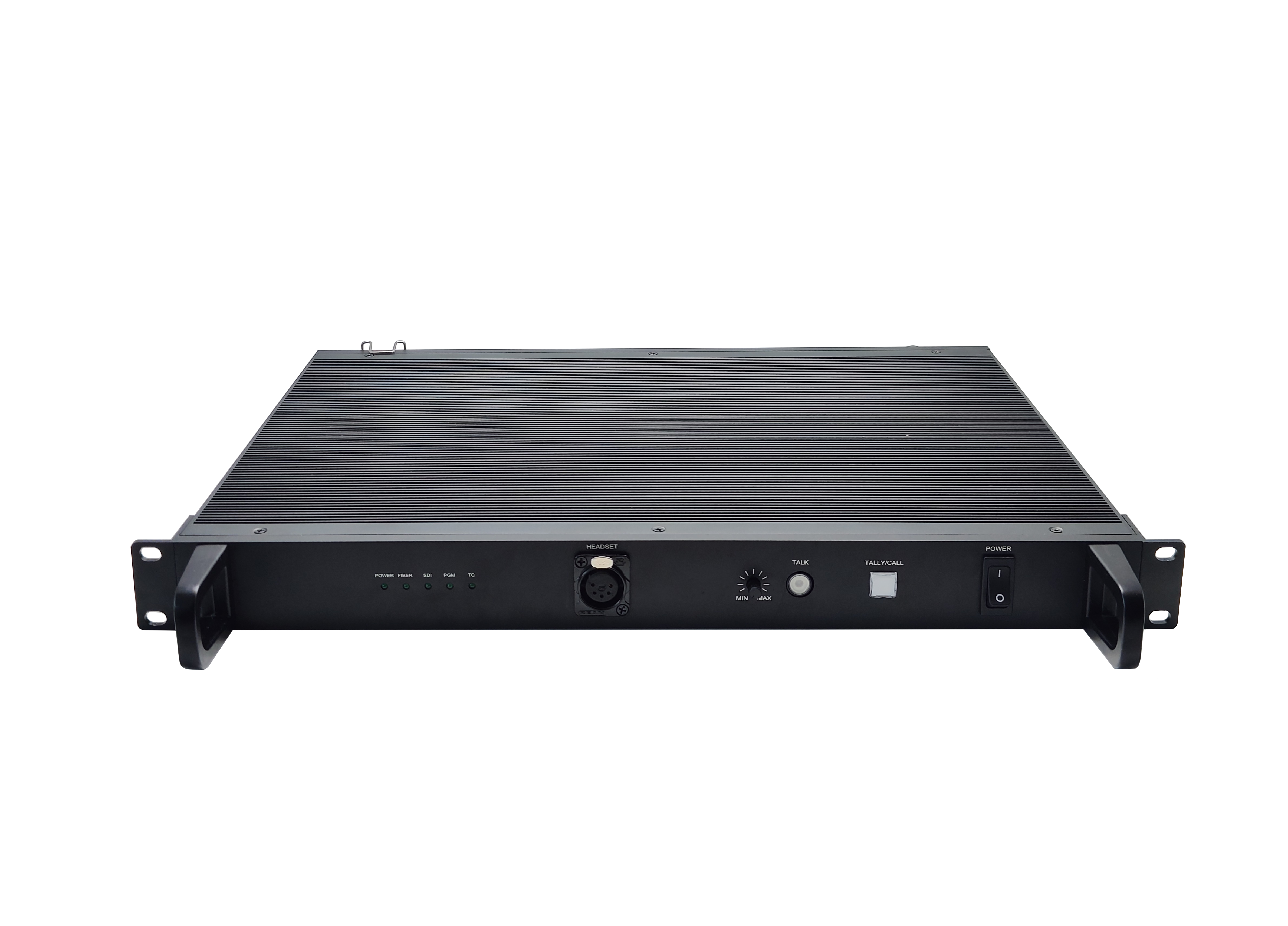

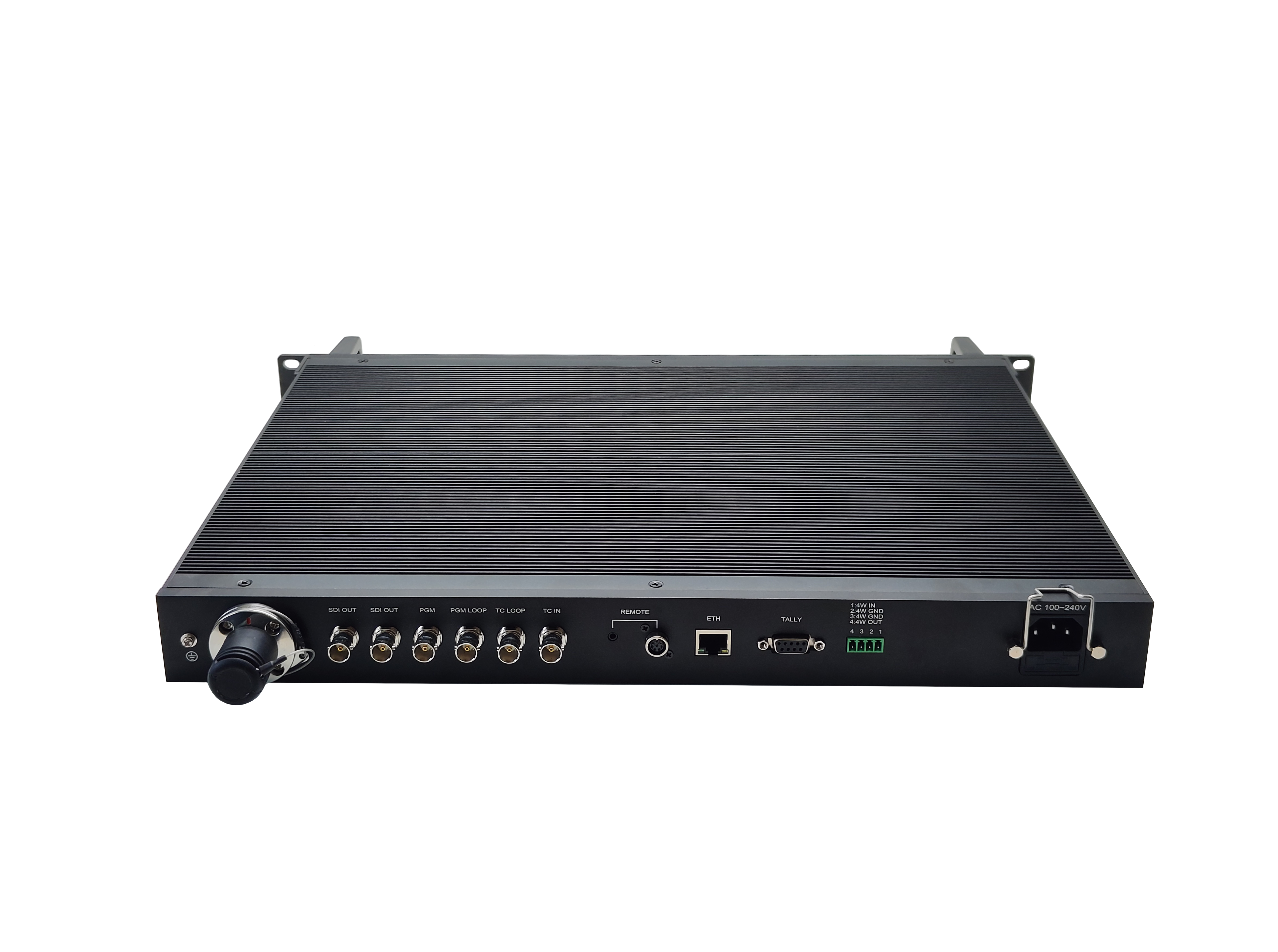

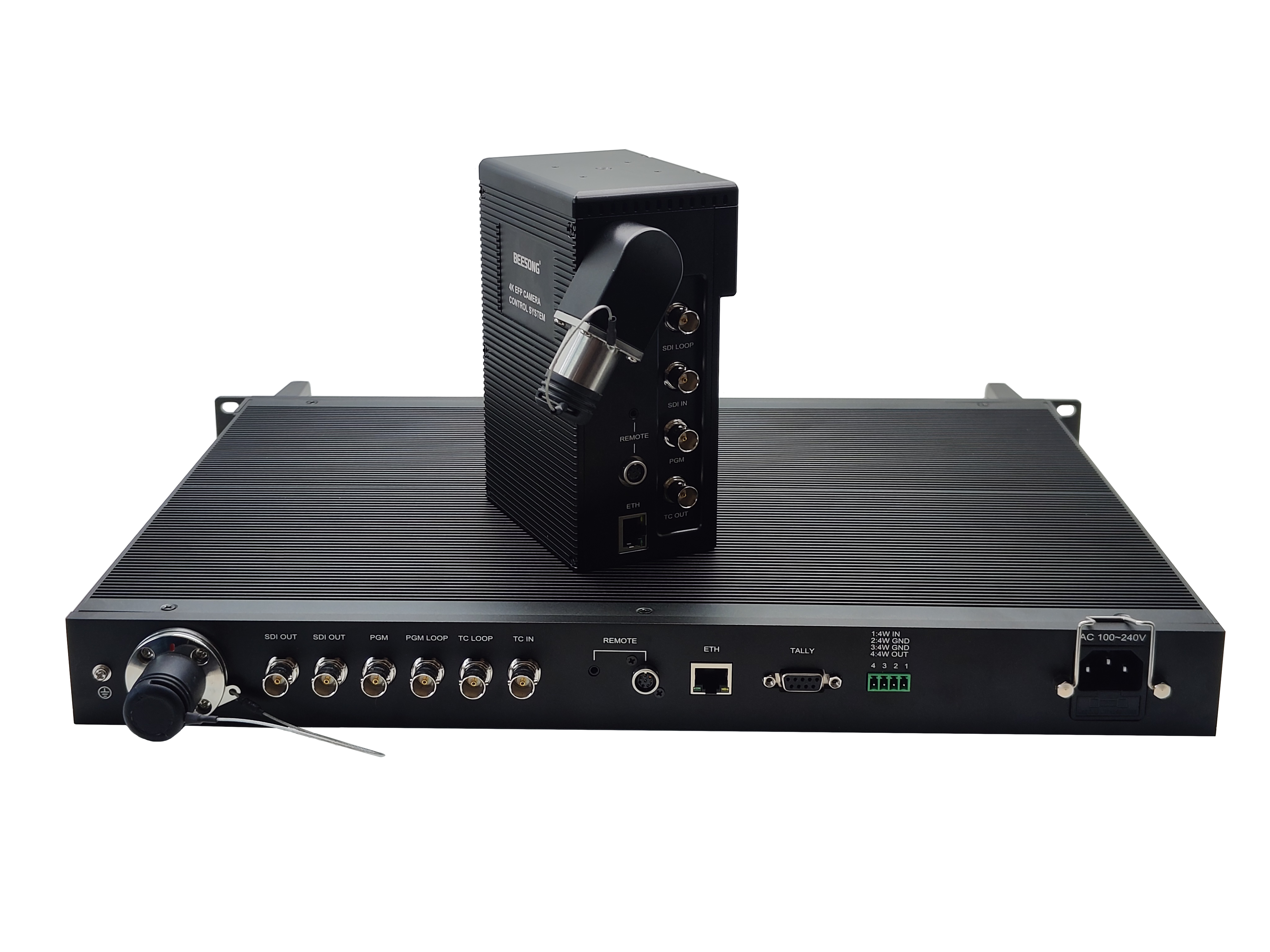

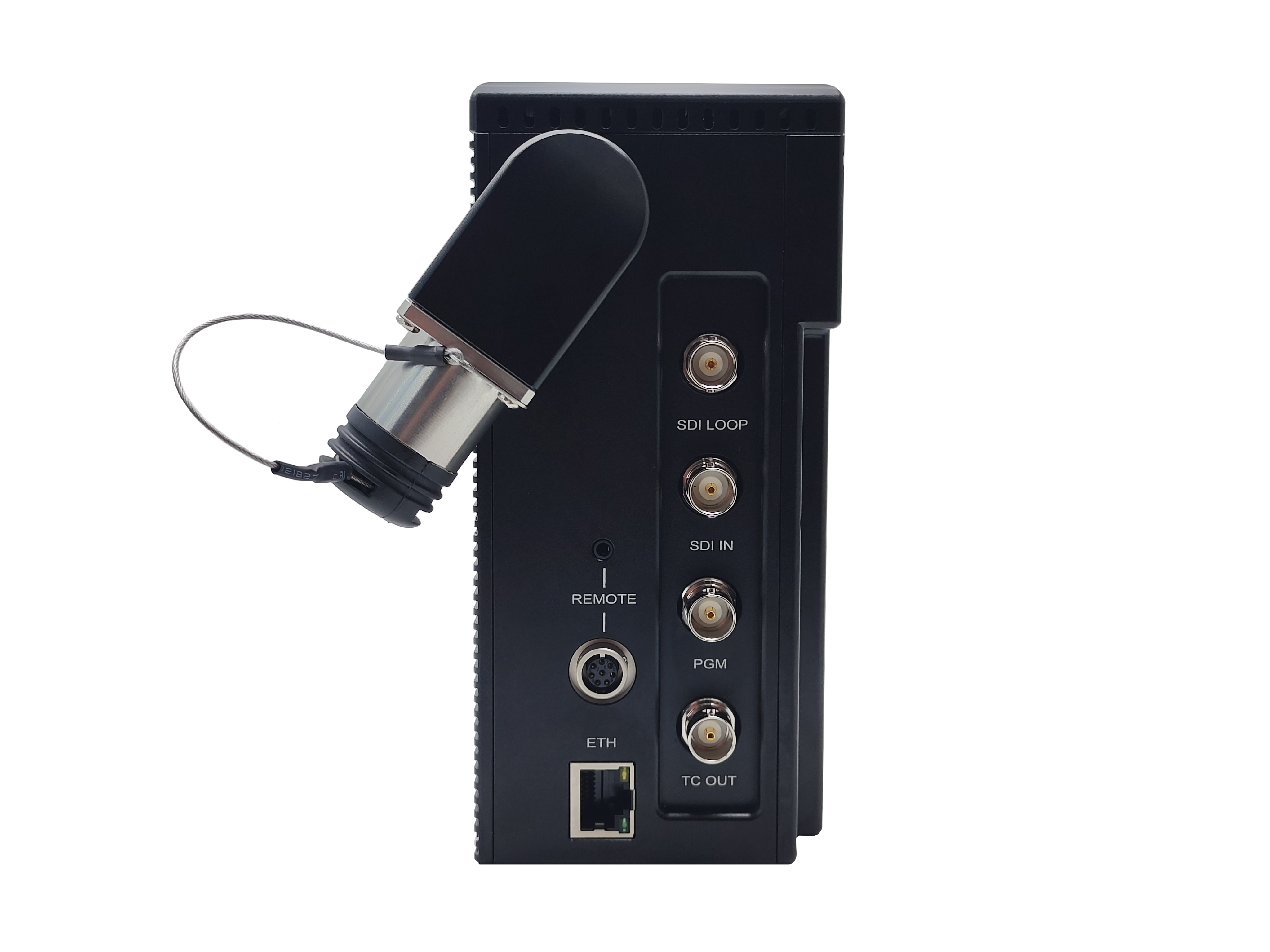

8.Transmitter desktop type, receiver 19 inch 1U rack type, all aluminum alloy,anodized shell,fanless heat dissipation design, IP40 protection level;

9.The transmitter provides 2 power supply modes (LEMO DC9~24V power supply, V-port mobile power supply 14.8V power supply);

10.The receiver provides AC100V~240V power supply;

11.Plug and play, no need testing;
